Windows Server 2012 R12 and Windows 10 on ESX 4.1!

By admin, October 31, 2015 22:22

Well, you didn’t mis-read the above! Yes, I finally managed to get both (W2K12R2 & Win10) running under the old daddy VMWare ESX 4.1 with the latest VMTools installed, not supported? Huh? You must be kidding me.

w2k12r2

1. Basically, in order to run your OEM copy of Windows Server 2012 R2, you will need to select Windows Server 2008 R2 as the OS template. Also you need the latest SLIC 2.3 ROM, the correct Dell Cert and of course a valid OEM Key.

2. De-select the default video driver (ie, WDDM) when installing VMware Tools or you will get a black screen immediately. At least this is true on Windows 10, but somehow no problem with W2K12R2. Details please refer to this blog article.

3. Still, you will find the mouse isn’t working smoothly in W2K12R2 and Win10, this happens to both Windows Server 2012 and Windows 8 as well, and the solution is simple, download and install the latest VMWare Tools which comes with the updated drivers for video (VMware SVGA 3D), disk controller (PVSCSI) and network cards (VMnet3).

win10

4. Again, after you have successful upgraded your VMWare Tools, then you will need to create a 1MB hard disk and select the SCSI to 1:0 and change the controller type to Paravirtual, restart the VM, shut it down, change the primary hard disk controller to Paravirtual as well, finally remove the 2nd disk and controller. Viola, there is your lightening fast PVSCSI disk!

5. The other things I discover W2K12R2 and WIN10 keeps crashing for every 3-5 hours without any reason, then I found this KB which solved the problem, and make sure you applied all the windows updates.

6. Another tips is to turn off the Sleep Mode under Power Option in Windows 10, or you will face VM constantly went to sleep and hence VMTools status always shows “Not Running”.

7. Finally I discover you can install the latest Linux CentOS 7.x and Ubuntu 15.x without any problem on ESX 4.1 although it’s not listed as supported OS…strange, but working perfectly fine which leads me to think we can in fact install any updated OS on the much older ESX 4.1. One hint is to download the latest VMTools and install it! (Actually you don’t need as somehow CentOS 7-1611 comes with VMTools automatically somehow)

8. I also noticed those Linux VMware Tools status shows as “Unmanaged”!  That’s actually ok, as the tools is installed from the latest package instead of using the default attached CD-ROM (which the version doesn’t work anyway), so you can safely ignore it.

So who said these two latest OS from Microsoft aren’t supported on ESX4.1? Think again. :)

Update: May 15, 2017

Tested the latest CentOS 7-1611 also worked perfectly on ESX4.1.

Update: Oct 10, 2017

Problem found W2K12 constantly hangs, finally identified it’s the old anti-virus program Symantec Endpoint Protection that’s causing the conflicts, you will need the version at least v14.0.2415 in order for the OS to be stable.


美麗的California!

By admin, October 27, 2015 14:28

今天在MC論壇看得會員ty5566這套出色的作品,他竟然可以把這個外型稍微帶有缺陷的CMC 250加州拍得是如此美麗動人,驚喜的是他最後加插更令人心動的捷豹E-Type,所以這次一定要給個讚!

R34 Nur. 版價格穩如泰山

By admin, October 26, 2015 13:24

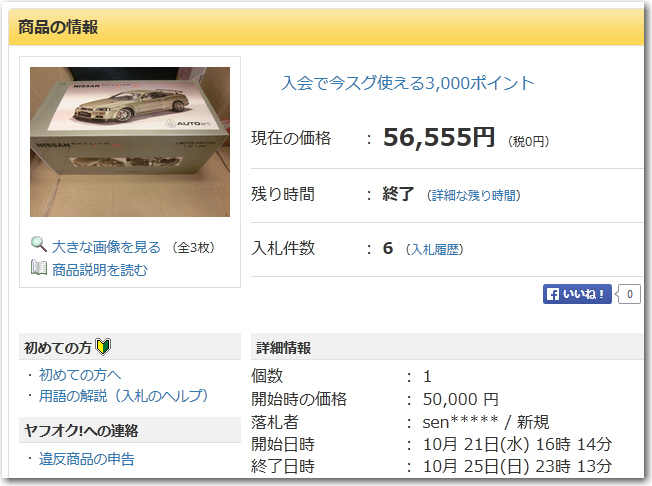

雖然Z-Tune已經復刻(這裡我們姑且不談品質下降的問題),這麼多年過去了,這台罕見的超絕版AA R34 Nur. 版(限量1000台)依然十分保值,而且每次出現必成為當日截標的搶手貨品。

nur

又一毒品級別的展示!

By admin, October 26, 2015 13:10

不用問,一看包裝就知道全部都是1比8的大傢伙! 看來近年Amalgam動作頻繁,積極推廣,已經成功爭取進入到了各個汽車陳列室和展覽會場中。

1518226_10202181459217429_801592344847182998_o

牛魔王的展櫃

By admin, October 25, 2015 13:12

只能用驚嘆來表示。

1167316_498284000256557_560323411_o

這個展櫃的背景很有心思

By admin, October 24, 2015 22:59

12049233_10203551258981929_4291334486696147736_n

唔好歧視,人哋呢啲都係模型車!

By admin, October 23, 2015 22:02

d0yMWNX

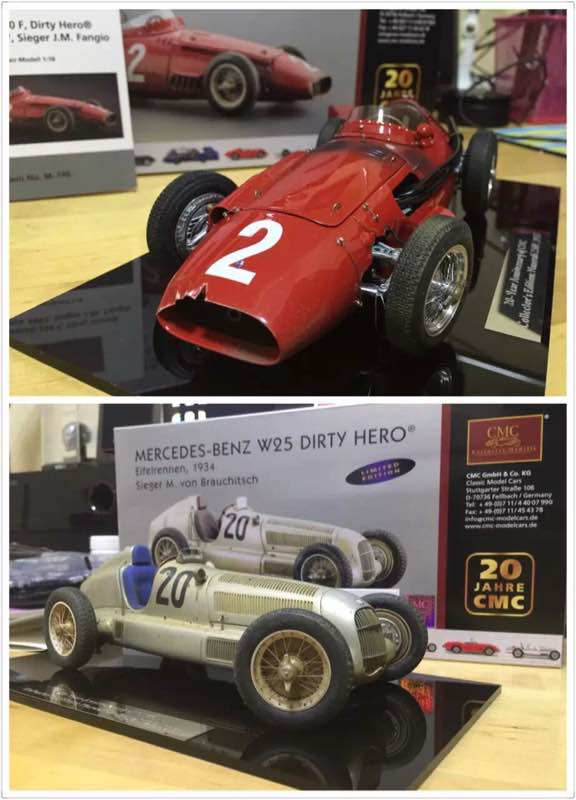

罕見的CMC舊化戰損版

By admin, October 22, 2015 13:27

聽說這兩台是CMC至今所推出的唯一舊化戰損版。

f51c63d0f703918fee074c41573d269758eec426

9ac8d6ca7bcb0a4691f4fab26d63f6246a60af26

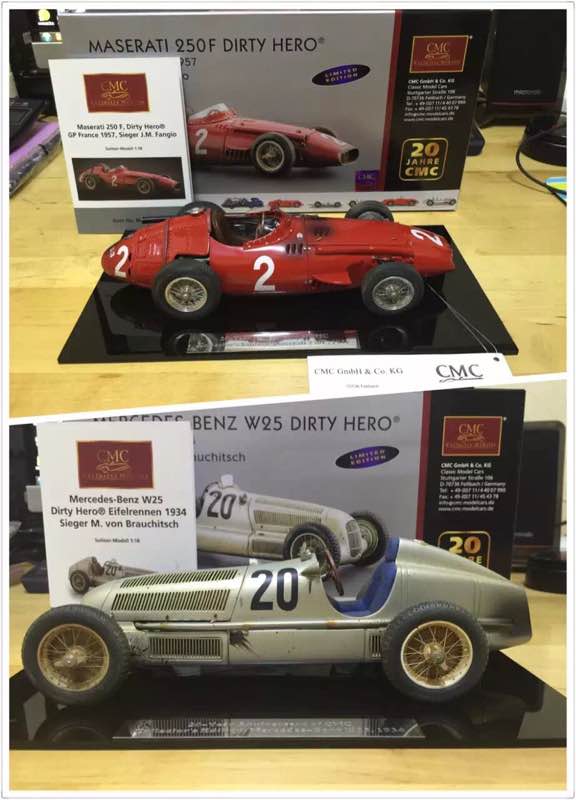

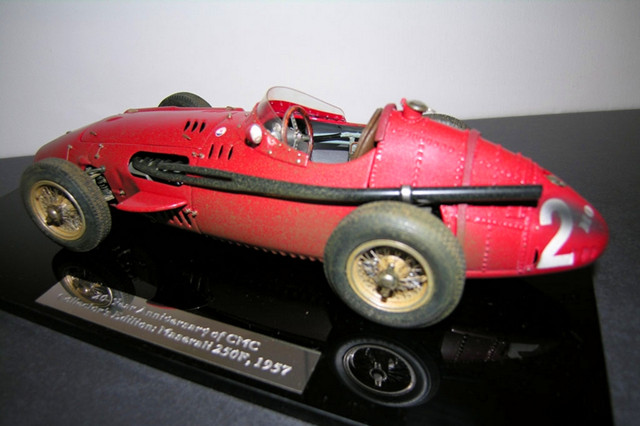

讓我們再對比一下之前的Dirty Hero樣板,成品明顯舊化程度有偷工減料之嫌。
